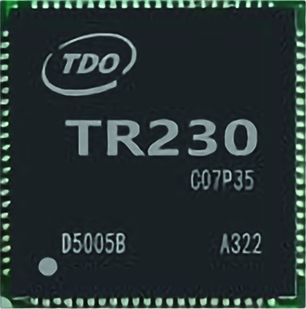

TR230S Chip
TDO TR230S Chip; In response to the demand of customers on the market to drive higher resolution and larger size modules through SPl/8080, Top Display have developed special transfer chip TR230S to solve the problem of interface mismatch. The solution uses a single power input, with a complete mainstream MCU platform reference driver.
Features:
• Conversion of 6800/8080 type CPU interface to parallel RGB interface
• Conversion of SPI/DSPI/QSPI interface to parallel RGB interface
• Hardware display rotation with 90°/180°/270°, mirroring and windowing
• Font integrated
• High efficient DBU(Display Bridge Unit) block
• 400MHz RISC-V core
• 8+8M Memory embedded
• 3.3VDC single power needed only
Compatible Platform:
• ESP32
• Arduino
• Raspberry Pi
